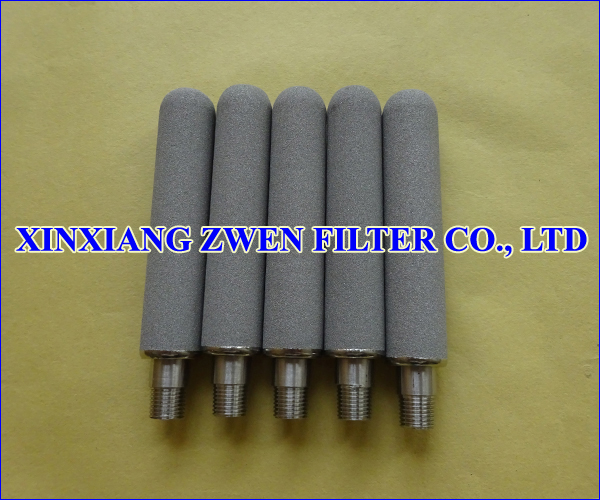

SS Powder Filter Element
SS Powder Filter Element Feature
1. SS powder filter element is made from stainless steel powder particle or titanium powder particle.
2. SS powder filter element is sintered in a high temperature vacuum furnace. So stainless steel powder particle or titanium powder particle won’t shed.
3. SS powder filter element is surface filtration and depth filtration
4. SS powder filter element has narrow pore size distribution
5. High dirt holding capacity
6. Good porosity
7. High filter rating accuracy
8. The effect of filtration is good
9. High filter efficiency
10. Good permeability
11. Pressure loss is low in filtration process
12. High flow rate at low differential pressure
13. High compression strength
14. Good mechanical strength
15. Good abrasion resistance
16. Good durability against most liquids, gases and aggressive steam
17. High temperature resistance
18. High corrosion resistance
20. Washable and Cleanable
22. Long service life
SS Powder Filter Element Technical Data
Raw Material: SS 316L,Titanium
Filter Rating: 0.22-100 Microns
Operation Temperature: ≤ 816 ℃
Outside Diameter: 12 mm, 25 mm, 30 mm, 50 mm, 60 mm, 65 mm, 80 mm, 90 mm, 100 mm
Length: 254 mm, 508 mm, 762 mm, 1016 mm or others
Gasket: PTFE, Viton, Silicone, Buna-n, EPDM
5. Thread (NPT,BSP,G,M,R)
7. Special customization
1. Steam filtration
2. High temperature liquid filtration
3. High temperature gases filtration
4. Catalysts powders recovery
5. Precoat support filtration
