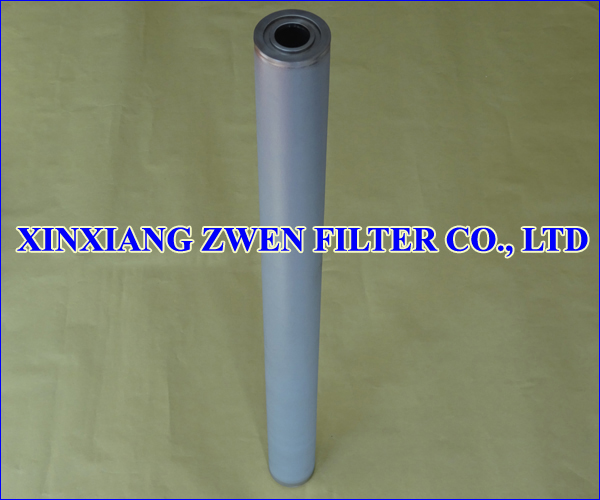

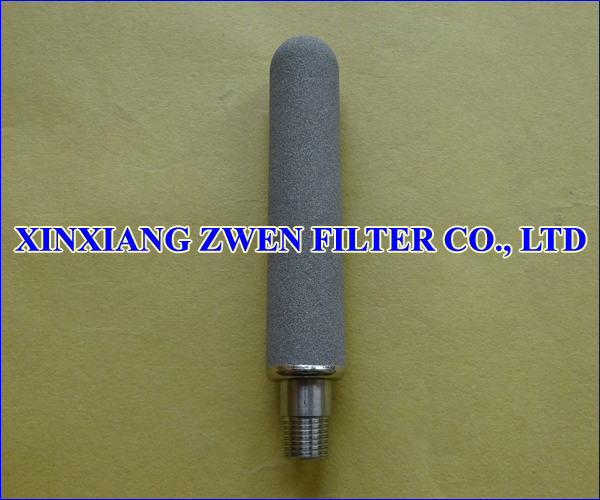

Ti Sintered Powder Filter Element
Ti Sintered Powder Filter Element

Ti Sintered Powder Filter Element

Ti Sintered Powder Filter Element Technical Data

Raw Material: Ti

Filter Rating Range: 0.22 Micron ~ 100 Microns

Operation Temperature:  300

Outside Diameter: 12 mm, 25 mm, 30 mm, 50 mm, 60 mm, 65 mm, 80 mm, 90 mm, 100 mm

Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization


Ti Sintered Powder Filter Element Feature

1. Ti sintered powder filter element is made from ti powder particle

2. Ti sintered powder filter element is sintered in a high temperature vacuum furnace

3. Ti sintered powder filter element is depth filtration

4. Ti sintered powder filter element has narrow pore size distribution

5. Ti sintered powder filter element is suitable for food industry and medicine industry (GMP) because ti is an in-noxious metal and an inert metal

6. High dirt holding capacity

7. High porosity

8. High filter rating accuracy

9. The effect of filtration is good

10. High filter efficiency

11. Good permeability

12. Pressure loss is low in filtration process

13. High flow rate at low differential pressure

14. High compression strength

15. High mechanical strength

16. High abrasion resistance

17. High durability against most liquids, gases and aggressive steam

18. High temperature resistance

19. High corrosion resistance

20. Backwash

21. Washable and Cleanable

22. Reusable

23. Long service life


Application

1. Steam filtration

2. High temperature liquid filtration

3. High temperature gases filtration

4. Catalysts powders recovery

5. Precoat support filtration
