Sintered Fiber Felt Filter Element

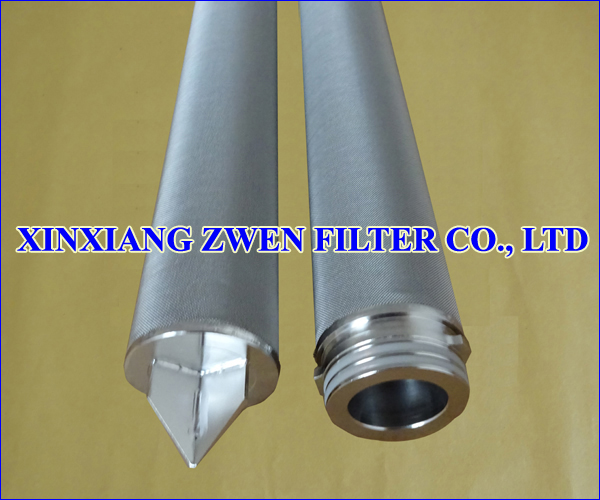

Cylindrical Sintered Fiber Felt Filter Element

Cylindrical Sintered Fiber Felt Filter Element

Cylindrical Sintered Fiber Felt Filter Element Technical Parameter

Raw Material: SS 316L

Filter Rating: 1-300 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  816

Outside Diameter: 25 mm, 30 mm, 50 mm, 60 mm, 63.5 mm, 65 mm, 100 mm, 150 mm, 250 mm, 380 mm, 500 mm or others

Length: 90 mm, 127 mm, 254 mm, 508 mm, 762 mm, 1016 mm or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector:

1. DOE

2. 220

3. 222

4. 226

5. Thread (NPT,BSP,G,M,R)

6. Flange

7. Special customization


Cylindrical Sintered Fiber Felt Filter Element Feature

1. Cylindrical sintered fiber felt filter element is surface filtration and depth filtration

2. Cylindrical sintered fiber felt filter element has high dirt holding capacity because of three dimensional fiber structures of zwen sintered fiber felt

3. Cylindrical sintered fiber felt filter element has a very high filter efficiency because of differential fiber layers density gradients of zwen sintered fiber felt

4. Stainless steel fiber will not shed in the filtration process

5. High porosity

6. High filter rating accuracy

7. High temperature resistance

8. High corrosion resistance

9. Pressure rise rate is slow in filtration process

10. Pressure loss is low in filtration process

11. High flow rate at low differential pressure

12. Washable and Cleanable

13. Reusable

14. Long service life


Application

Polyester filtration, polymer filtration, high viscosity filtration, fuels and lubricants filtration, oil filtration, steam filtration, high temperature gas filtration, high temperature liquid filtration, steam filtration, potable and process water filtration, beverages filtration, detergent filtration, solvents filtration, pharmaceutical industry, chemical industry, chemical fiber industry, food industry



About Us

XINXIANG ZWEN FILTER CO.,LTD  produces pleated metal filter cartridge (pleated wire mesh filter cartridge, pleated sintered fiber felt filter cartridge), sintered metal filter basket, sintered metal filter cartridge (sintered fiber felt filter cartridge, sintered mesh filter cartridge, sintered powder filter cartridge), sintered metal filter disc (sintered mesh filter disc, sintered powder filter disc), sintered metal filter sheet (sintered fiber felt, sintered mesh, sintered powder filter sheet), sintered metal filter tube (sintered mesh filter tube, sintered powder filter tube).



With high-end sintering equipment, welding equipment and skilled workers, we have passed ISO 9001:2008 quality management system and SGS audit test.



Our products are used in petroleum industry, chemical industry, aerospace industry, pharmaceutical industry, food industry, beverage industry.



Our main markets are European market and North American market.
