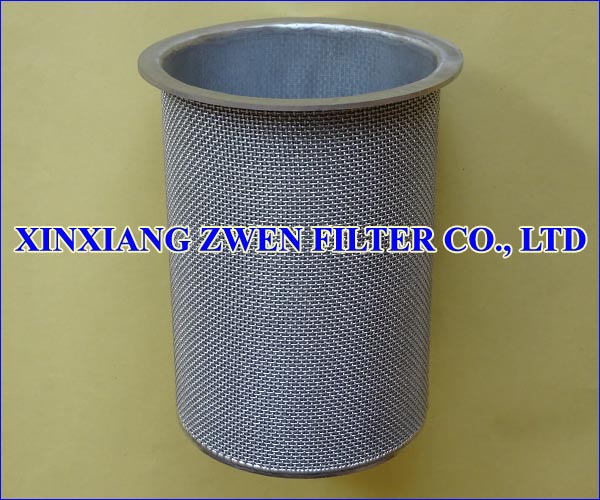

Cylindrical Sintered Wire Cloth Filter Element
Cylindrical Sintered Wire Cloth Filter Element Technical Parameter
Raw Material: SS 316L, SS 304
Filter Media: ZWEN Sintered Wire Cloth
Filter Rating Range: 0.5 Micron ~ 2000 Microns
Filter Efficiency: > 99.99 %
Operation Temperature: ≤ 816 ℃
Outside Diameter: 10 mm, 15 mm, 25 mm, 30 mm, 50 mm, 60 mm, 63.5 mm, 65 mm,
100 mm, 150 mm, 250 mm, 380 mm, 500 mm or others
Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others
Gasket: PTFE, Viton, Silicone, Buna-n, EPDM
Connector/Fitting/Adaptor:
1. DOE
2. Code 2 (226+Flat End)
3. Code 3 (222+Flat End)
4. Code 7 (226+Fin End)
5. Code 8 (222+Fin End)
6. Thread (NPT,BSP,G,M,R)
7. Flange
8. Special customization
Cylindrical Sintered Wire Cloth Filter Element Feature
1. Cylindrical sintered wire cloth filter element is surface filtration
2. Cylindrical sintered wire cloth filter element is good for backwash because the pore passage of zwen sintered wire cloth aperture is very smooth
3. Cylindrical sintered wire cloth filter element has uniform pore size distribution
4. High compression strength
5. High mechanical strength
6. High rigidity
7. High abrasion resistance
8. High durability against most liquids, gases and aggressive steam
9. High temperature resistance
10. High filter rating accuracy
11. High filter efficiency
12. High corrosion resistance
13. Washable and Cleanable
14. Reusable
15. Long service life
Application
Polyester filtration, polymer filtration, membrane filtration, oil filtration, steam filtration, gas filtration, powder filtration, liquid filtration, water filtration, beverages filtration, detergent filtration, solvents filtration, medicine filtration, pharmaceutical industry, petroleum industry, biological industry, chemical industry, chemical fiber industry, food industry
